Description:
The Duty Standby Booster system is mainly used for pressure boosting and water transfer. The pressure booster system is a fully integrated package. There are many applications for different purposes and to maintain constant pressure for many useful applications.
Applications:
The appropriate applications are as follows:
- Hotels
- Hospitals
- High-rise residential apartments
- High-rise commercial buildings
- Shopping centers
- Low-rise buildings
- Cold water boosting
- Rainwater harvesting
- Municipal water supply
- Dust suppression
- Agricultural systems
- Dairy
- Irrigation
- Industrial water supply
- Mining civil services
Benefits & Ease of Use:

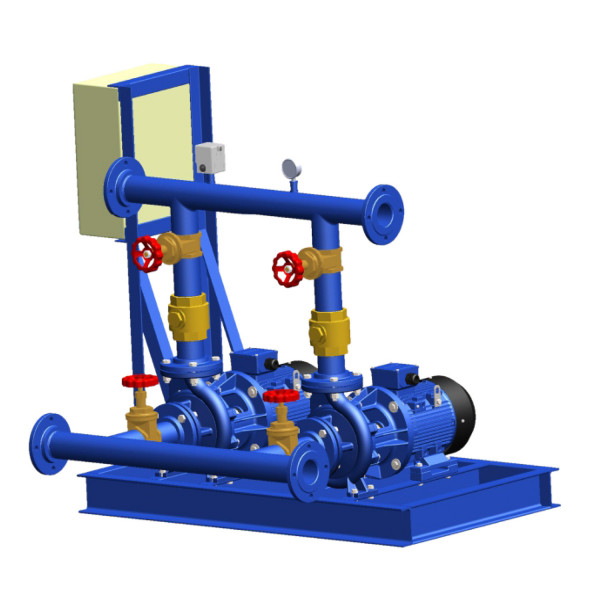

The system consists of parallel pump sets, pump controllers, and the necessary mechanical fittings. It is suitable for 2 or 3 pumps of any type, and the unique electronic hydraulic control ensures each pump operates at its maximum performance level by allocating optimal power to each pump. The duty standby and parallel pump sets have been specifically designed from the ground up based on feedback. The system is simple to use, and the parallel pumps maintain the same pressure at the same flow rate.
Centrifugal Monoblock Performance:
| Model | Power | Phase | Inlet/Outlet | Max. Flow (m³/h) | Max. Head (m) | Max. Suction (m) | |
|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||
| PCB-5.5 | 4 | 5.5 | 3 Phase | 2.5″ x 2.5″ | 25 | 32 | 8 |
| PCB-7.5 | 5.5 | 7.5 | 2.5″ x 2.5″ | 47 | 28 | ||
| PCB-10 | 7.5 | 10 | 3″ x 3″ | 50 | 32 | ||
| PCB-15 | 11 | 15 | 3″ x 3″ | 47 | 44 | ||
Solo Pump Performance:
| Model | Power | Phase | Inlet/Outlet | Max. Flow (m³/h) | Max. Head (m) | Max. Suction (m) | |
|---|---|---|---|---|---|---|---|
| Kw | Hp | ||||||
| PSB-10 | 7.5 | 10 | 3 Phase | 3″ x 3″ | 90 | 45 | 8 |
| PSB-15 | 11 | 15 | 90 | 55 | |||
| PSB-20 | 15 | 20 | 90 | 65 | |||
| PSB-30 | 22 | 30 | 90 | 88 | |||
Abbreviation:
PCB: Prakash Centrifugal Booster System
PSB: Prakash Solo Booster System
